Small footprint PDUs
for mission-critical environments.

Designed and manufactured by our in-house expert team, our Power Distribution Units (PDUs) can be tailored to specific configurations to meet the most stringent requirements for delivering and monitoring power to critical systems in the data centre and industrial sectors.

Planned and designed in as small a footprint as possible using the latest, state-of-the-art software, including Solidworks 3D modelling and EPLAN. Our PDUs are precisely built to the highest IEC 614392-2 standards.

Features & Benefits
Highest safety standards

Built to IEC61439-2 standard, with form of separation up to Form 4B Type 6.

Flexible configurations or Standard solutions

Which allows for varying degrees of redundancy, resilience, and power requirements.

Reduced footprint design

Optimising floor space, allows for important equipment.

Ease of access

To all components for maintenance and thermal imaging surveys.

Fully tested

To the highest standards and all statutory requirements, including design verified and tested up to 1600A.

High-quality components

Featuring components from leading manufacturers including but not limited to ABB, Schneider, Janitza, Socomec and DEHN.

Designed with the latest software

All panels carefully designed using Solidworks 3D Modelling and EPLAN, shortening lead times and reducing the risk of manual and manufacturing errors.

Full and complete documentation

All backed by rigorous and detailed documentation, including operation maintenance manuals, commissioning manuals, detailed electrical schematics, and more.

Smooth powder-coated finish
Ingress protection
IP54, IP42 or IP31
Elsteel patented Techno Module system construction
Cable access
Top or bottom
Construction separation
IEC-61439-2, up to Form 4B Type 6

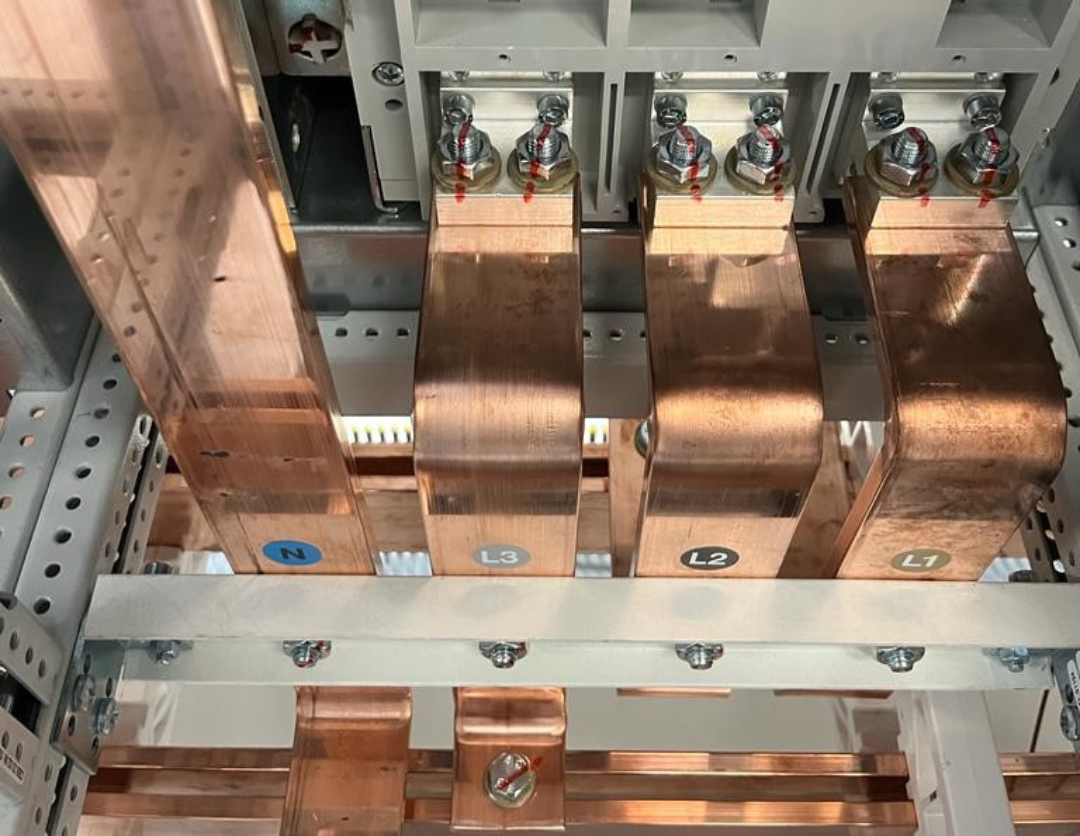

Busbar system current rating
250A to 1600A
Busbar system short circuit rating
(36kA/1s) (50kA/1s)
Low voltage ratings
400V / 690V
Available in most RAL
HMI touchscreen interface
Intelligent operator interface available in multiple sizes

Products tailored to your specifications.

  • 100% or 200% neutral busbar options.
  • K-rated isolation transformers or active harmonic filters.
  • Provisions for live thermal imaging.
  • Equipment can incorporate a wide range of metering.
  • Load limit alarms.
  • Integrated active temperature monitoring.
