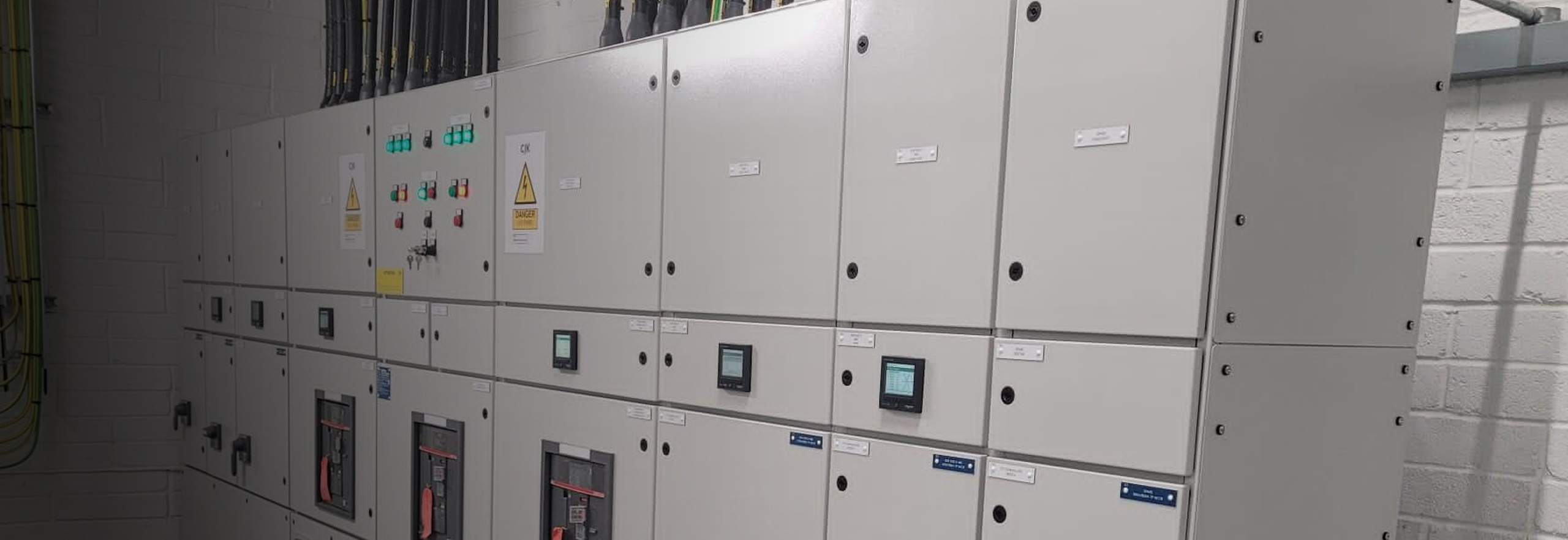

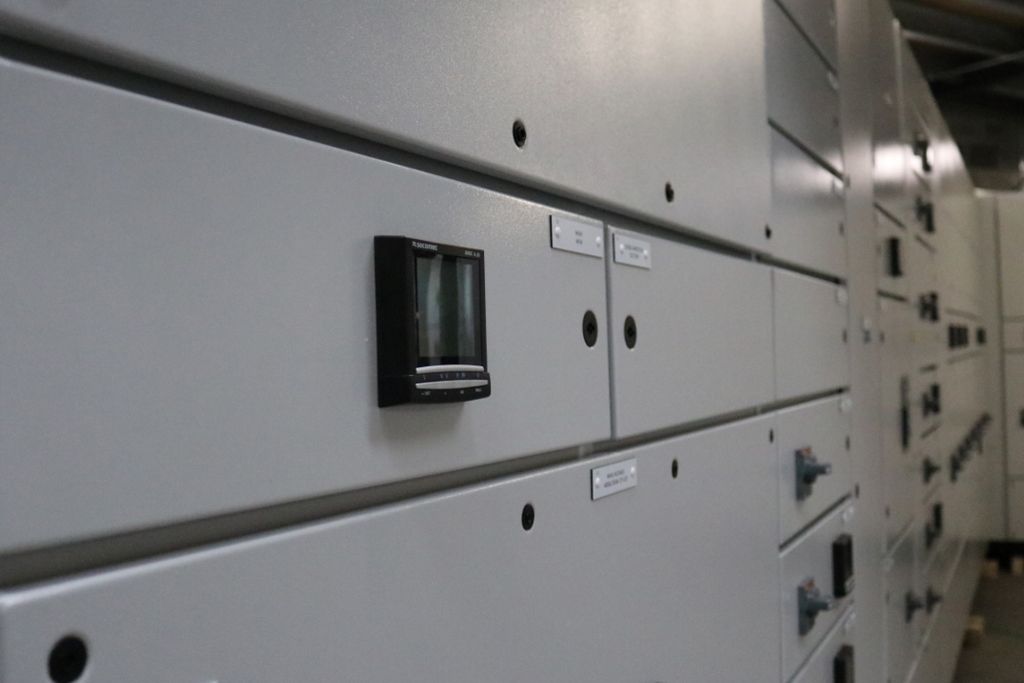

Main LV distribution boards

Our main distribution boards comply with IEC 61439-2 or UL 891 Ed. 12, with form of separation up to Form 4 Type 7, Icw up to 120kA 1 sec, and In to 6300A. Our designs are fully verified as compliant with type test for multiple circuit breaker manufacturers, and agreed FAT and witness requirements.

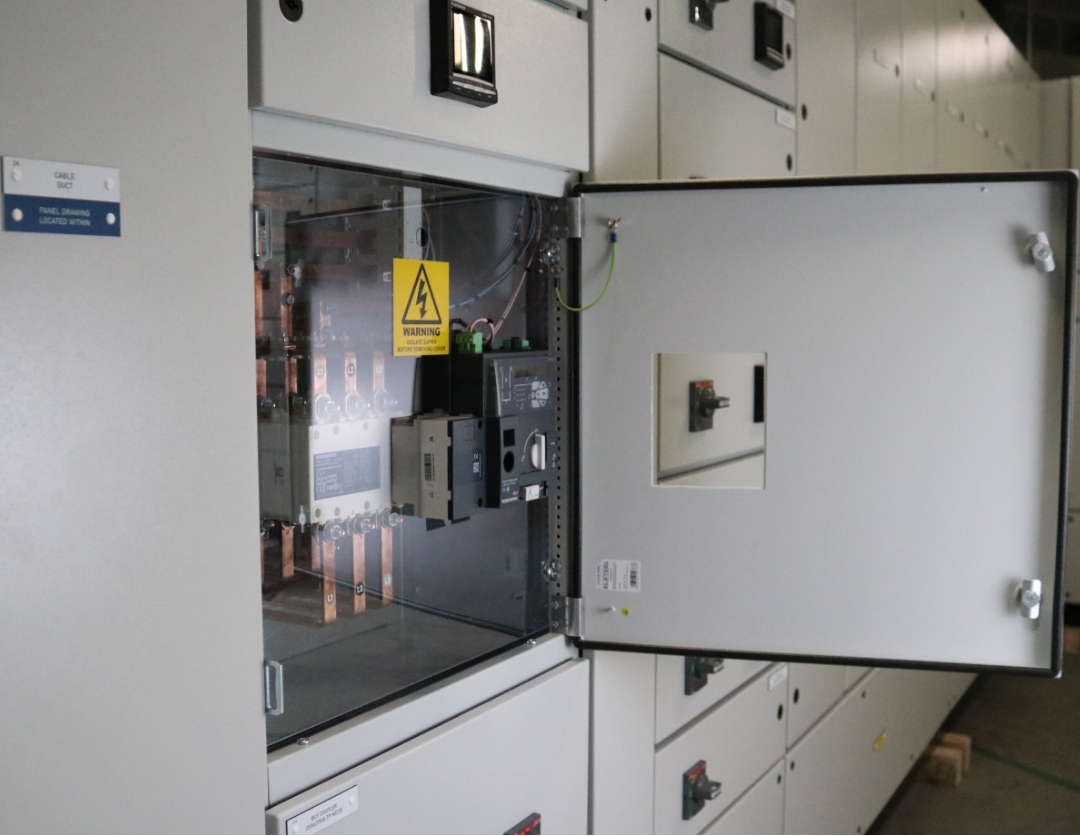

Fixed, withdrawable and plug-in options available for both ACB and MCCB modules. The power construction of the cabinets is standardised based on the type tested design, and the controls and orientation can be customised to meet your requirements. Our engineering team will design control schematics to meet your needs. We use leading design software to create a solution that meets your specification and technical submission requirements.

We minimise risk throughout the entire project lifecycle – from early design development to engineering, manufacture, testing, delivery and commissioning. With detailed designs, robust manufacturing processes, comprehensive factory testing and experienced project managers, we identify and resolve issues before they cause delays or extra cost. The result is greater certainty at every stage and reliable power distribution when it matters most.

We can work with you to create the space, people and engineering capability to support the pace and repeatability of your mission-critical projects. Capital can manage demanding programmes across multiple countries while maintaining high quality standards – thanks to high-volume production capacity, hands-on teams and scalable processes.

We can close couple transformers to provide packaged sub-station solutions. We can also provide mounting options such as skid/e-house solutions.

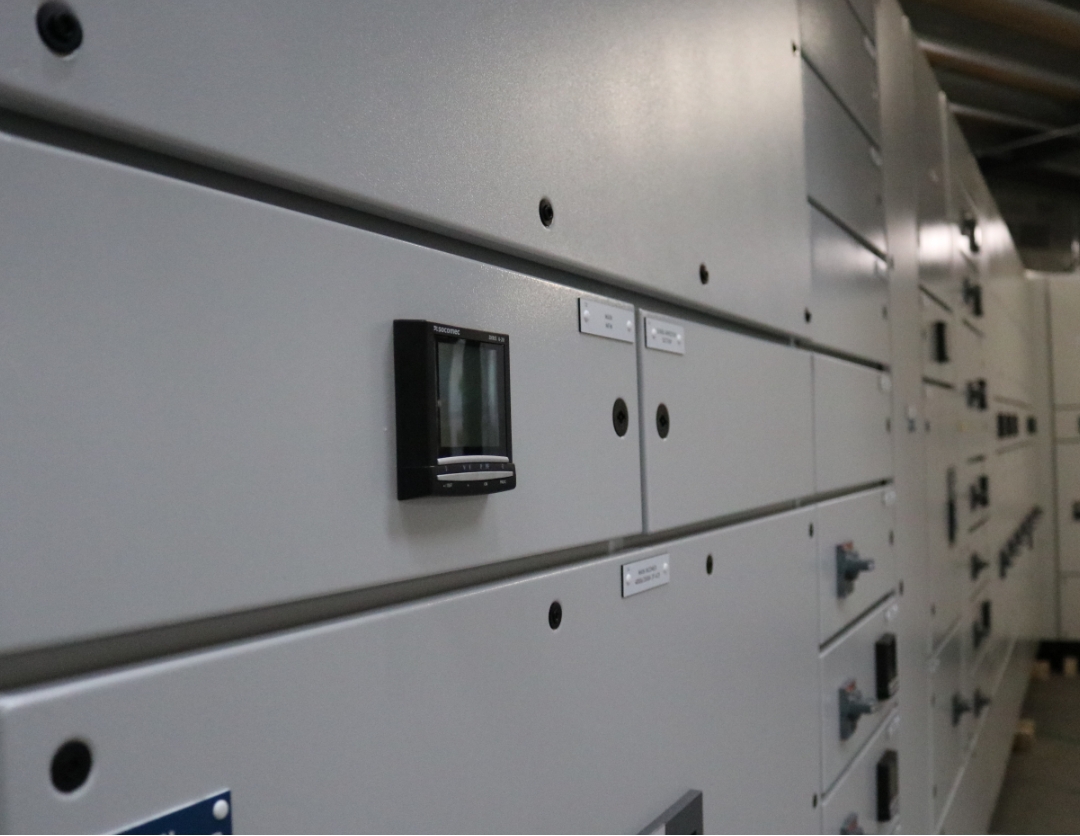

We’ll select energy measurement components to meet your site standard requirements for electrical power monitoring system (EPMS) and surge protection devices (SPDs) to meet your site lightning protection system (LPS).
